The National Instruments LabVIEW certification scheme contains the following 3 levels of certification:
- LabVIEW Certified Developer (CLD)
- LabVIEW Certified Architect (CLA) Every level is the prerequisite for the next level of certification A CLAD demonstrates a comprehensive and comprehensive understanding of the main features and functionalities available in the complete LabVIEW development system and has the ability to apply this knowledge to develop, debug and maintain small LabVIEW modules. The typical CLAD experience level is approximately 6-9 months using the complete LabVIEW development system. A CLD demonstrates experience in the development, debugging, implementation and maintenance of LabVIEW applications at medium and large scale. A CLD is a professional with an accumulated observation of approximately twelve to eighteen months in the development of medium to large applications in LabVIEW. A CLA demonstrates the mastery of the LabVIEW application architecture for a multi-developer environment. A CLA not only has the technical expertise and experience in software development to divide a project specification into manageable LabVIEW components but also has the necessary experience to execute the project effectively using project management tools. and configuration. A CLA is a professional with approximately 24 months of accumulated experience in the development of medium to large applications in LabVIEW. Certified LabVIEW Associate Developer Certification is a 4 course, fully online program addressing the faith that teaching English learners requires recognition of first and second language acquisition theories in order to give a successful education environment. Registrants are required to apply for graduate admission and provide a copy of their teaching credentials before beginning this program.
- LabVIEW Certified Associate Developer (CLAD)
How to book CLAD Exams
In order to apply for the CLAD, You have to follow these steps
- Go to the CLAD Official Site
- Read the instruction Carefully
- Follow the given steps
- Apply for the CLAD
NEW QUESTION # 34

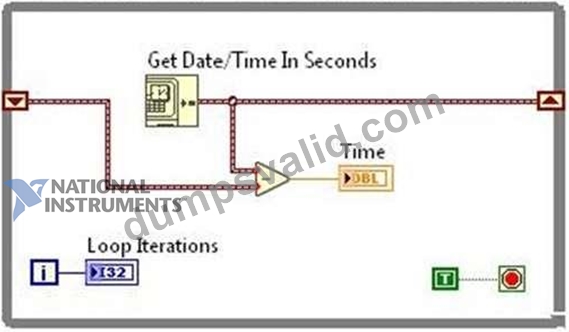

After this VI has run 3 times, what value is displayed in the indicators Loop Iterations and Time?
- A. Loop Iterations = 3, Time = Seconds between the 1st and 3rd time the VI ran.
- B. Loop Iterations = 0, Time = Seconds between the 1st and 3rd time the VI ran.
- C. Loop Iterations = 3, Time = Seconds between the 2nd and 3rd time the VI ran.
- D. Loop Iterations = 0, Time = Seconds between the 2nd and 3rd time the VI ran.
Answer: C
NEW QUESTION # 35
Which of the following is a manual step when creating a SubVI from a section of Code using Edit>Create SubVI?
- A. Assigning terminals to the appropriate indicators and controls
- B. Select the section of the block diagram you want to convert to a SubVI
- C. Configure the Connector Pane to have enough terminals for all inputs and outputs
- D. Connect the controls and indicators on the front panel to terminals on the connector pane
Answer: B
Explanation:
Explanation/Reference:
Explanation:
Selected section of the block diagram is replaced with an icon for the subVI.
Reference: http://www.ni.com/white-paper/7593/en/
NEW QUESTION # 36
A coercion dot indicates that:
- A. Data values are being coerced because they are out of range
- B. A data buffer is created to handle data conversion
- C. The data types are consistent
- D. Apolymorphic operation will be performed on the data
Answer: B
NEW QUESTION # 37
Which of the following does not conform to the Dataflow programming paradigm?
- A. Local Variables
- B. Shift Registers
- C. subVIs
- D. Tunnels
Answer: A
NEW QUESTION # 38
Clusters provide a user with which of the following benefits?
- A. Clusters increase the number of Connector Pane terminals of SubVI's.
- B. Both A and C.
- C. Clusters allow a logical grouping of related data elements.
- D. Clusters help to reduce wire clutter on the Block Diagram.
Answer: B
NEW QUESTION # 39

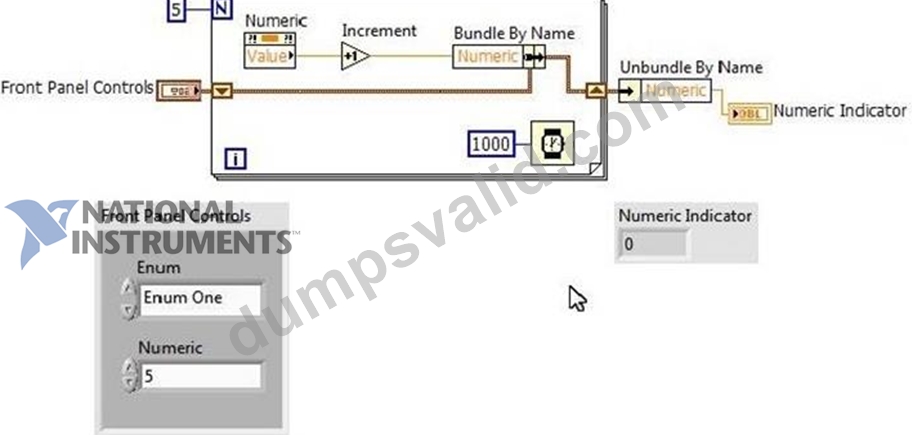

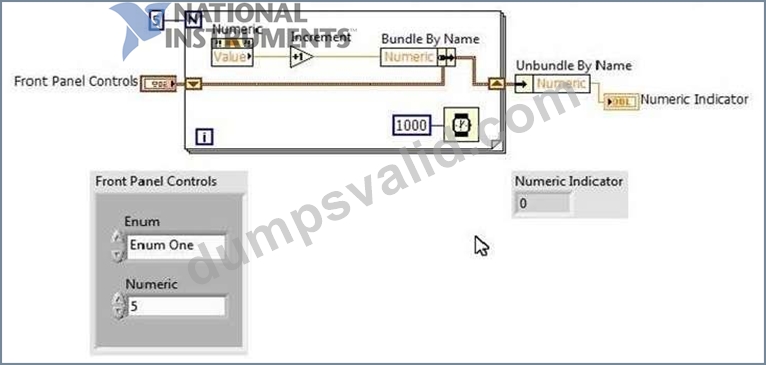

The VI begins execution with the value of Numeric as 5, at the end of the 4th loop iteration (i=3), the user changes the front panel control Numeric to value 2.
What value will be displayed in the front panel Numeric indicator after the VI completes execution?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION # 40
Which of the following statements is true about the following block diagram?
- A. The loop will execute infinitely and the program will have to be aborted
- B.
The loop will not execute and the iteration terminal, , will return a null value - C.
The loop will execute once and the iteration terminal, , will output a value of one - D.
The loop w ill execute once and the iteration terminal, , will output a value of zero
Answer: A
NEW QUESTION # 41

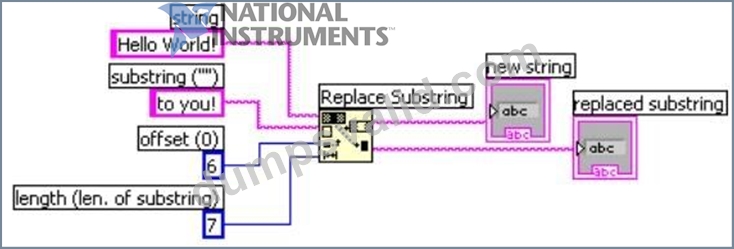

What is the result in new string after the following code has executed?
- A. Hello Wto you!
- B. Helloto you!
- C. Hello to you!
- D. Hello to you!!
Answer: C
NEW QUESTION # 42

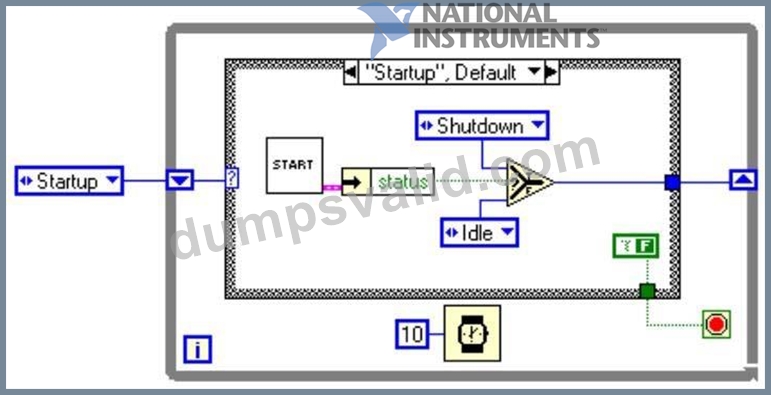

The following block diagram represents which common type of VI architecture?
- A. State Machine VI
- B. Multiple Case Structure VI
- C. Parallel Loop VI
- D. General VI
Answer: A
NEW QUESTION # 43
Which combination of words correctly completes the following statement?
Unlike __________, which display an entire waveform that overwrites the data already stored, ___________ update periodically and maintain a history of the data previously stored.
- A. Charts;Plots
- B. C harts; Graphs
- C. Graphs;Charts
- D. Plots; Graphs
Answer: C
NEW QUESTION # 44
th
The VI begins execution with the value of Numeric as 5, at the end of the 4 loop iteration (i=3), the user changes the front panel control Numeric to value 2.
What value will be displayed in the front panel Numeric indicator after the VI completes execution?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION # 45
You develop a SubVI that only outputs a value and need to use this SubVI in a (calling) VI. Which of the following is the best way to enforce dataflow to control the execution of the SubVI?
- A. Modify the SubVI to have a global variable and use it from the calling VI
- B. Use the SubVI in a Sequence structure
- C. Modify the SubVI to have dummy inputs that can be used from the calling VI
- D. Modify the SubVI to have Error clustersthat can be used from the calling VI
Answer: D
NEW QUESTION # 46
What is the behavior of this VI when the code executes?
- A. Loop 2 runs after Loop 1 stops
- B. Loop 1 and Loop 2 are deadlocked
- C. Loop 1 and Loop 2 run simultaneously
- D. Loop 1 runs after Loop 2 stops
Answer: C
NEW QUESTION # 47
Under which of the following conditions does a For loop stop executing?
- A. When afalsevalue is present at the conditional terminal and the conditionalterminal isC:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
- B. When the value of the iteration terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG, is one more than the value of thecount terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
- C. When the value of the iteration terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG, is one less than the value of thecount terminal,C:\Documents and Settings\RraAsShHiIdD\Desktop\untitled.JPG
- D. None of the above
Answer: C
NEW QUESTION # 48

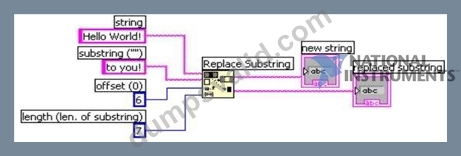

What is the result in new string after the following code has executed?
- A. Hello Wto you!
- B. Helloto you!
- C. Hello to you!
- D. Hello to you!!
Answer: C
NEW QUESTION # 49
Which of the following statements is true about the iteration terminal ?
- A. It returns the number of times the loop has executed
- B. It returns a constant number
- C. It returns the number of times the loop has executed, minus one
- D. It returns the number of times the loop has executed, plus one
Answer: C
NEW QUESTION # 50
Can Probes be attached to objects on the Front Panel?
- A. Yes
- B. No
Answer: B
NEW QUESTION # 51

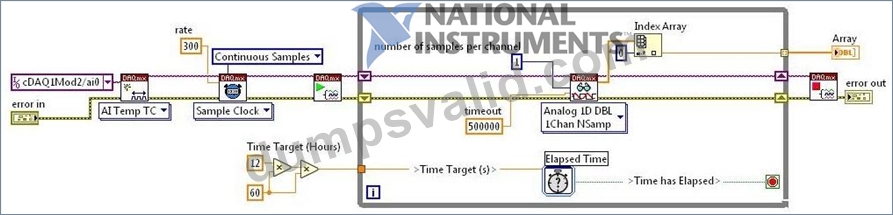

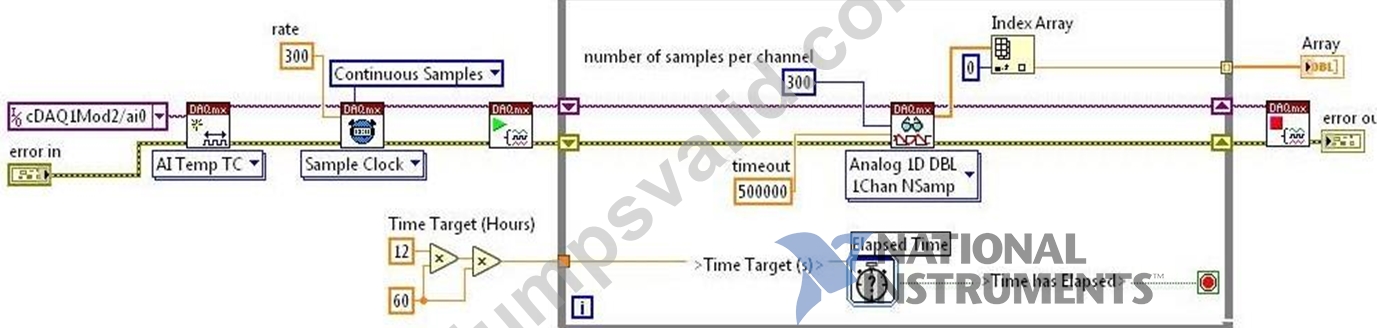

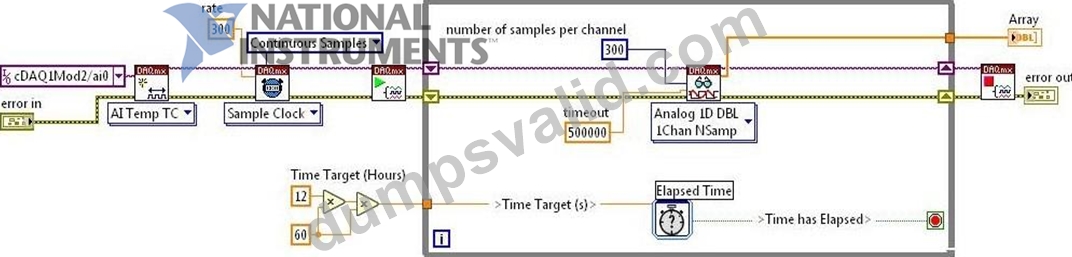

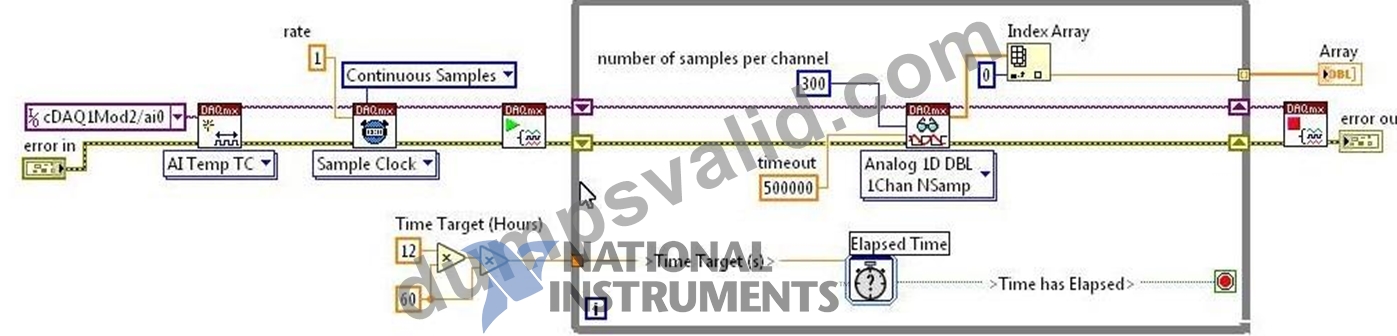

Which VI will acquire one temperature data point every 5 minutes for 12 hours?
- A.
- B.
- C.
- D.
Answer: C
NEW QUESTION # 52
You have a control on the front panel of a VI and you need to modify one of its properties at run time.
Which of the following is the best approach you would take?
- A. Create a control reference, pass the reference to a property node and select the property to modify
- B. Create a linked shared variable and select the property to modify the property
- C. Create a local variable and select the property to modify
- D. Create an implicit property node and select the property to modify
Answer: D
NEW QUESTION # 53
Which of the following allows you to plot any set of points, evenly distributed or not?
- A. Waveform Graph
- B. Waveform Chart
- C. Both A, and C.
- D. XY Graph
Answer: D
NEW QUESTION # 54
Which of the following will allow you to have multiple plots on a Waveform Graph?
- A. Both B and C.
- B. Bundle the elements of each waveform into a cluster and build an array of these clusters, then wire the array to the Waveform Graph indicator.
- C. Build an n-dimensional array of data with each plot in a separate row (or column) in the array, then wire the array to the Waveform Graph indicator.
- D. Bundle two 1D arrays of X and Y data together for each plot. Then build an array of these clusters and wire it to the Waveform Graph indicator.
Answer: A
NEW QUESTION # 55
If an input name on the Show Context Help window is in bold for a SubVI, which of the following conditions are true? (Choose all apply)
- A. A broken run arrow will result unless the input is wired.
- B. An input is recommended, but not required.
- C. An input is required.
- D. Input values must be scalar.
Answer: A,C
NEW QUESTION # 56

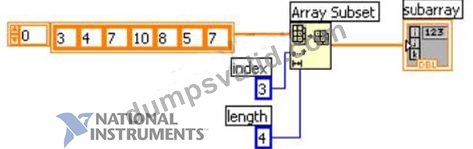

What is the result in subarray after the following code has executed?
- A. A 1-D Array of {10, 8, 5}
- B. A 1-D Array of {7, 10, 8, 5}
- C. A 1-D Array of {8, 5, 7}
- D. A 1-D Array of {10, 8, 5, 7}
Answer: D
NEW QUESTION # 57
You develop a SubVI that only outputs a value and need to use this SubVI in a (calling) VI. Which of the following is the best way to enforce dataflow to control the execution of the SubVI?
- A. Modify the SubVI to have a global variable and use it from the calling VI
- B. Use the SubVI in a Sequence structure
- C. Modify the SubVI to have dummy inputs that can be used from the calling VI
- D. Modify the SubVI to have Error clusters that can be used from the calling VI
Answer: D
NEW QUESTION # 58
......
What is the duration, language, and format of CLAD Exam
Format: Multiple choices, multiple answers
- Number of Questions: 40-question
- Passing score: 70%
- Language: English
- Length of Examination: 1 hour
